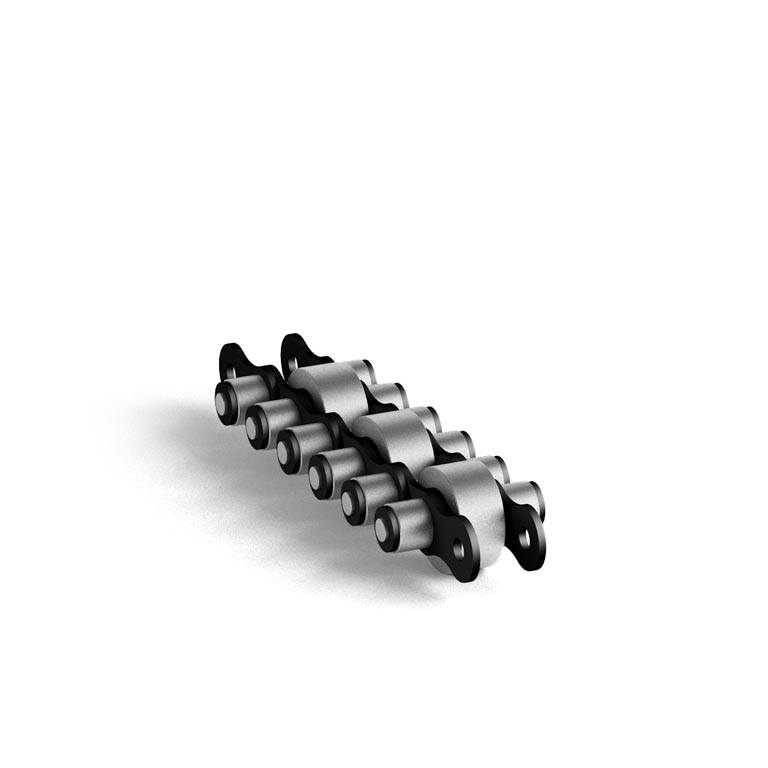

3/4" triple fly-roller chain with idle roller

cod. 939902-28D

3/4" triple fly-roller chain with idle roller

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

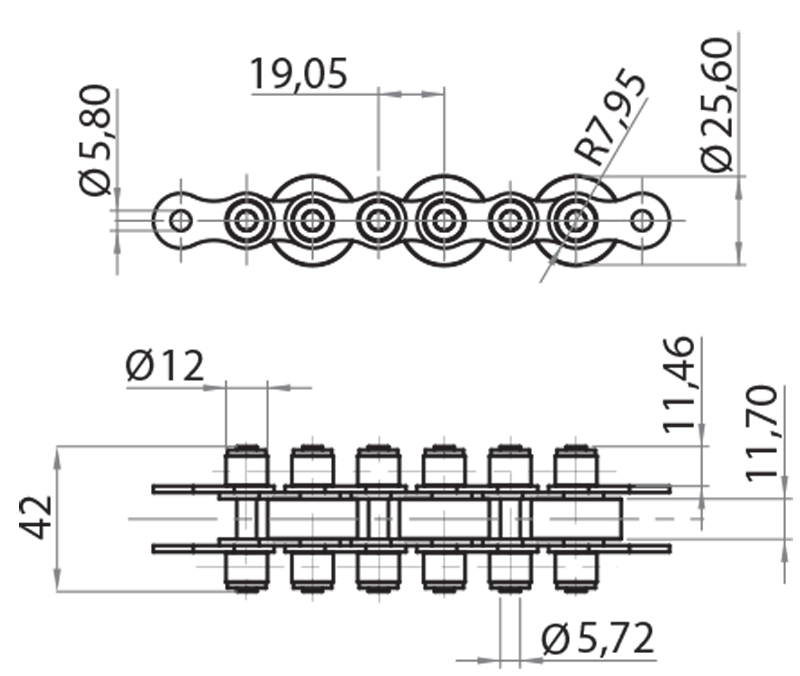

Reference Material Supply condition Dimensions Average breaking load (Kg) Weight (Kg/m)
939902-29
chain
 steel 5 m with Ø25.6 roller 3/4" pitch 3000 2
939903-29
joint
 steel single joint 0.022
939902-28D*
chain
 delrin 5 m with Ø28 roller 1.6
939903-28D*
joint
 delrin single joint 0.022
*available on request
