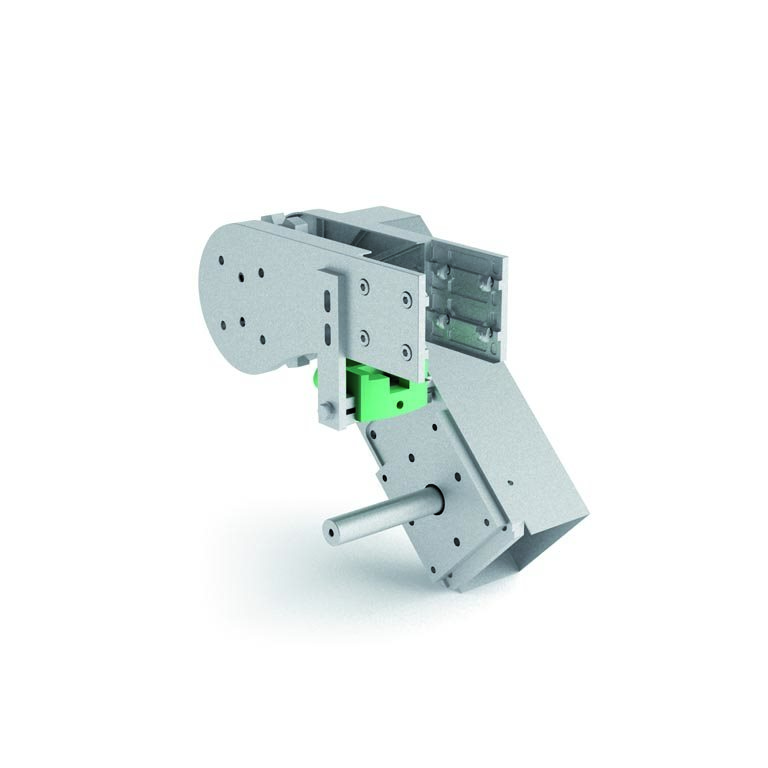

Motorization with countershaft

cod. ATR12086SX

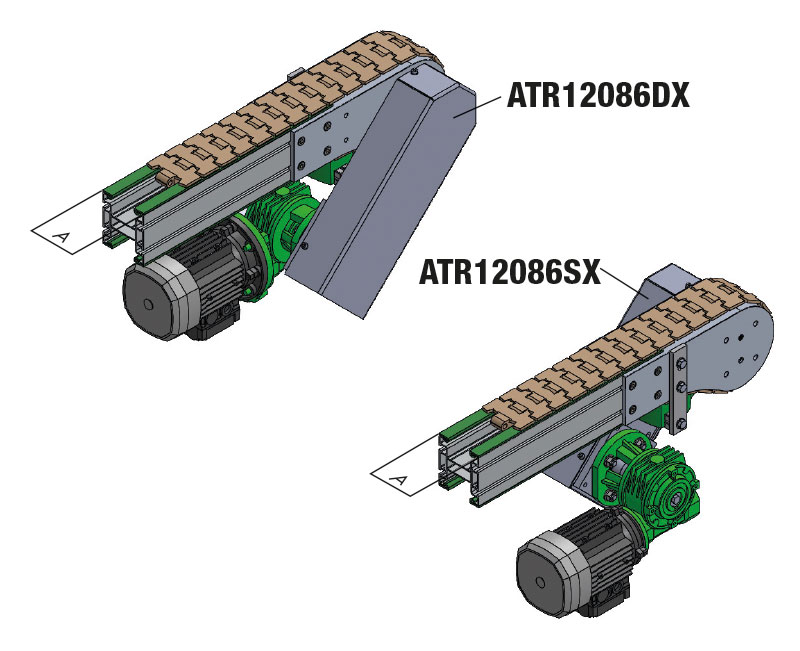

Reversed drive motor available in right-hand (ATR12086DX) and left-hand (ATR12086SX) versions

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) A (mm)
ATR12086DX 86 82,5 86
ATR12086SX
ATR12127D 127 114,3 127
ATR12127S
ATR12196D 196 190,5 196
ATR12196S
ATR12259D 259 254 259
ATR12259S
ATR12314D 314 304,8 314
ATR12314S
