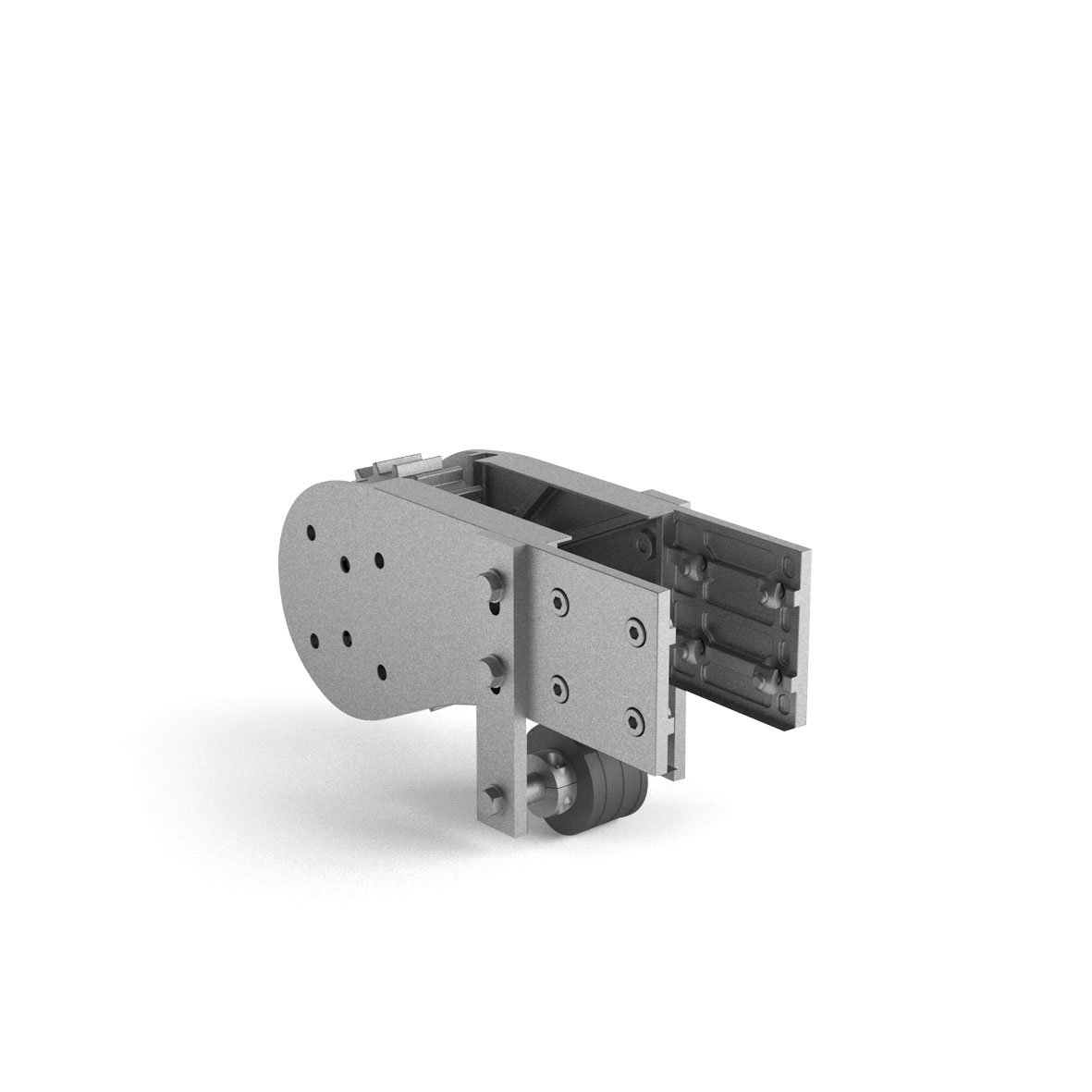

86 channel idle head, steel chain

cod. ARU12086P

86 channel idle head, steel chain

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

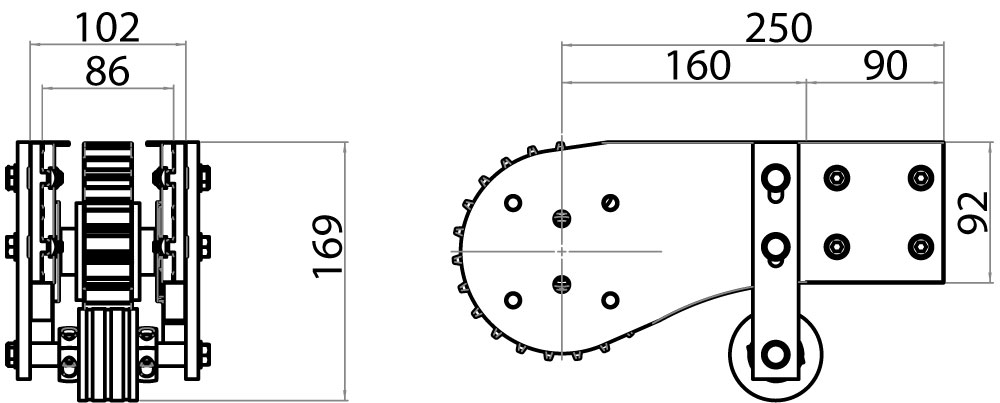

Art. No. Channel dimension (mm) Chain width (mm) Pitch Ø (mm) External Ø (mm) No. of teeth
ARU12086P 86 82,5 141,2 142 23
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
