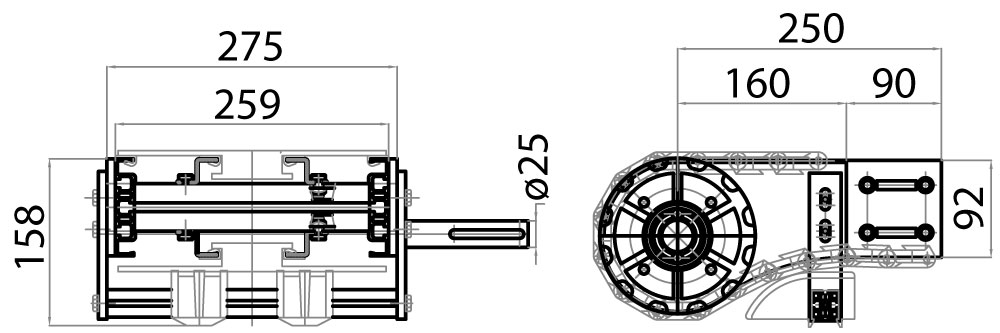

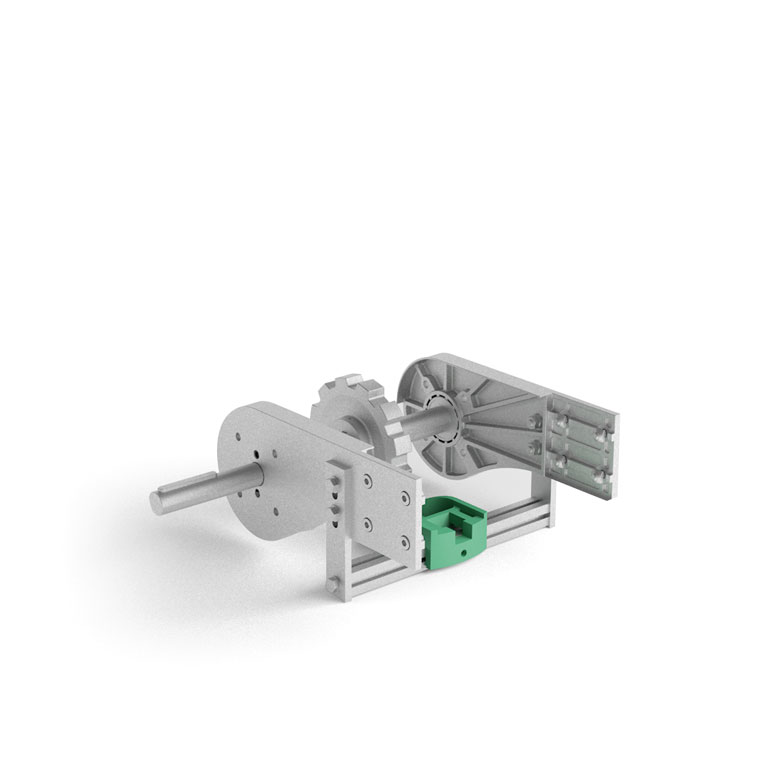

12 teeth pulling head (left) for chain 254 mm

cod. ATS12260

12 teeth pulling head (left) for chain 254 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Pitch Ø (mm) External Ø (mm) No. of teeth
ATS12259 259mm with sliding shoe 254 147,2 149,9 12
ATS12260 259mm with roller 254 147,2 149,9 12
