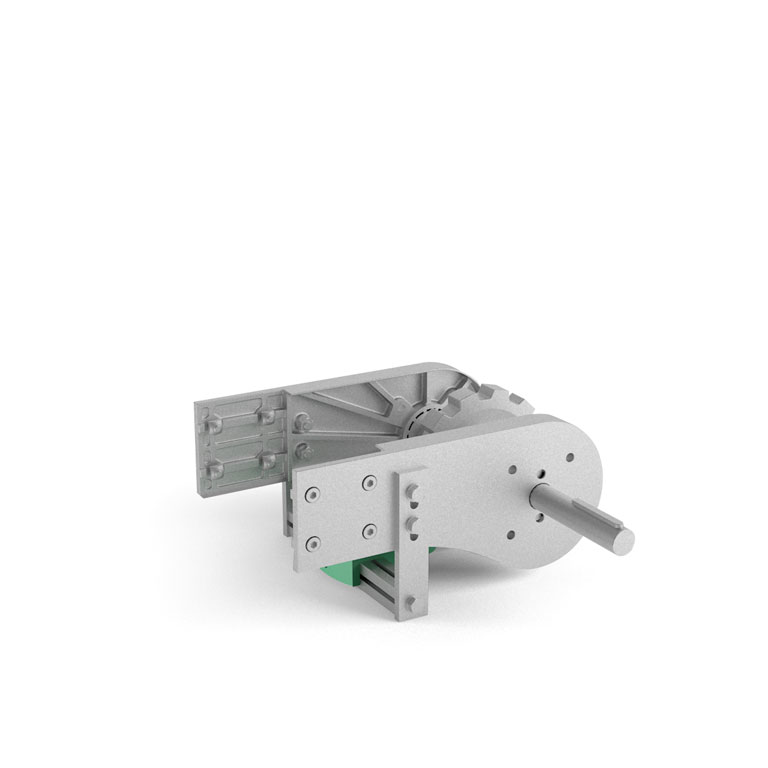

12 teeth pulling head (right) for chain 190,5 mm

cod. ATD12197

12 teeth pulling head (right) for chain 190,5 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In

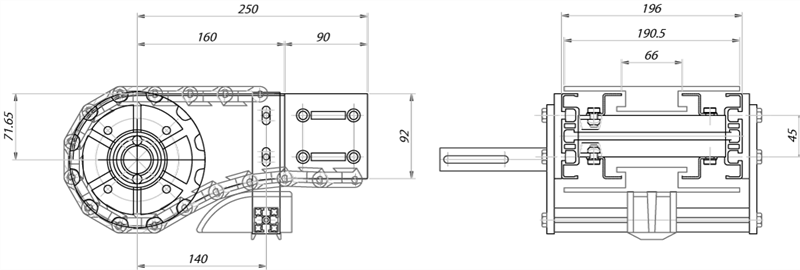

Art. No. Channel dimension (mm) Chain width (mm) Pitch Ø (mm) External Ø (mm) No. of teeth
ATD12196 196mm with sliding shoe 190,5 147,2 149,9 12
ATD12197 196mm with roller 190,5 147,2 149,9 12
Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
