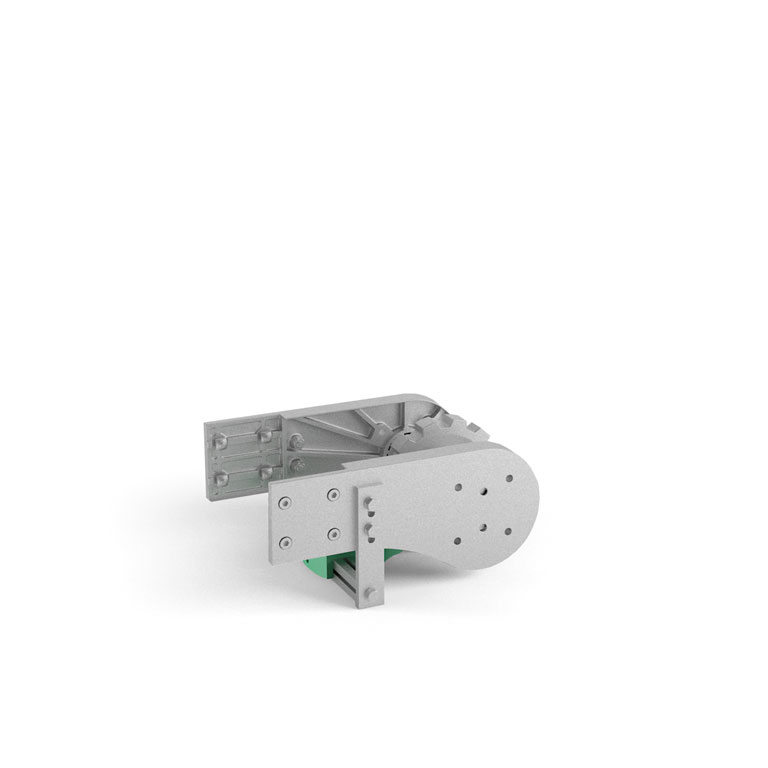

12 teeth idle head for chain 190,5 mm

cod. ARU12197

12 teeth idle head for chain 190,5 mm

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Pitch Ø (mm) External Ø (mm) No. of teeth
ARU12196 196mm with sliding shoe 190,5 147,2 149,9 12
ARU12197 196mm with roller 190,5 147,2 149,9 12
