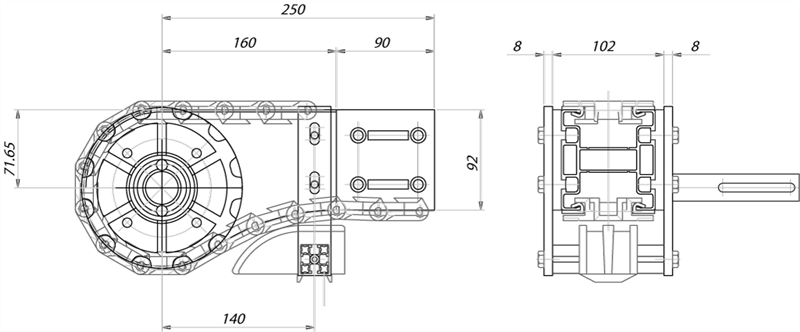

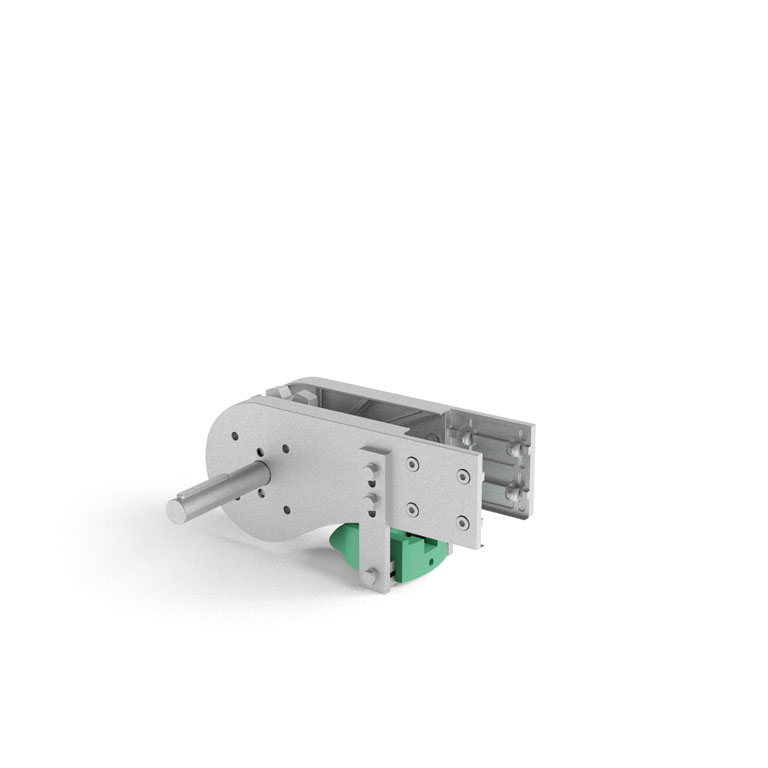

12 teeth pulling head (left) for chain 82,5

cod. ATS12087

12 teeth pulling head (left) for chain 82,5

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Pitch Ø (mm) External Ø (mm) No. of teeth
ATS12086 86 mm with sliding shoe 82,5 147,2 149,9 12
ATS12087 86 mm with roller 82,5 147,2 149,9 12
