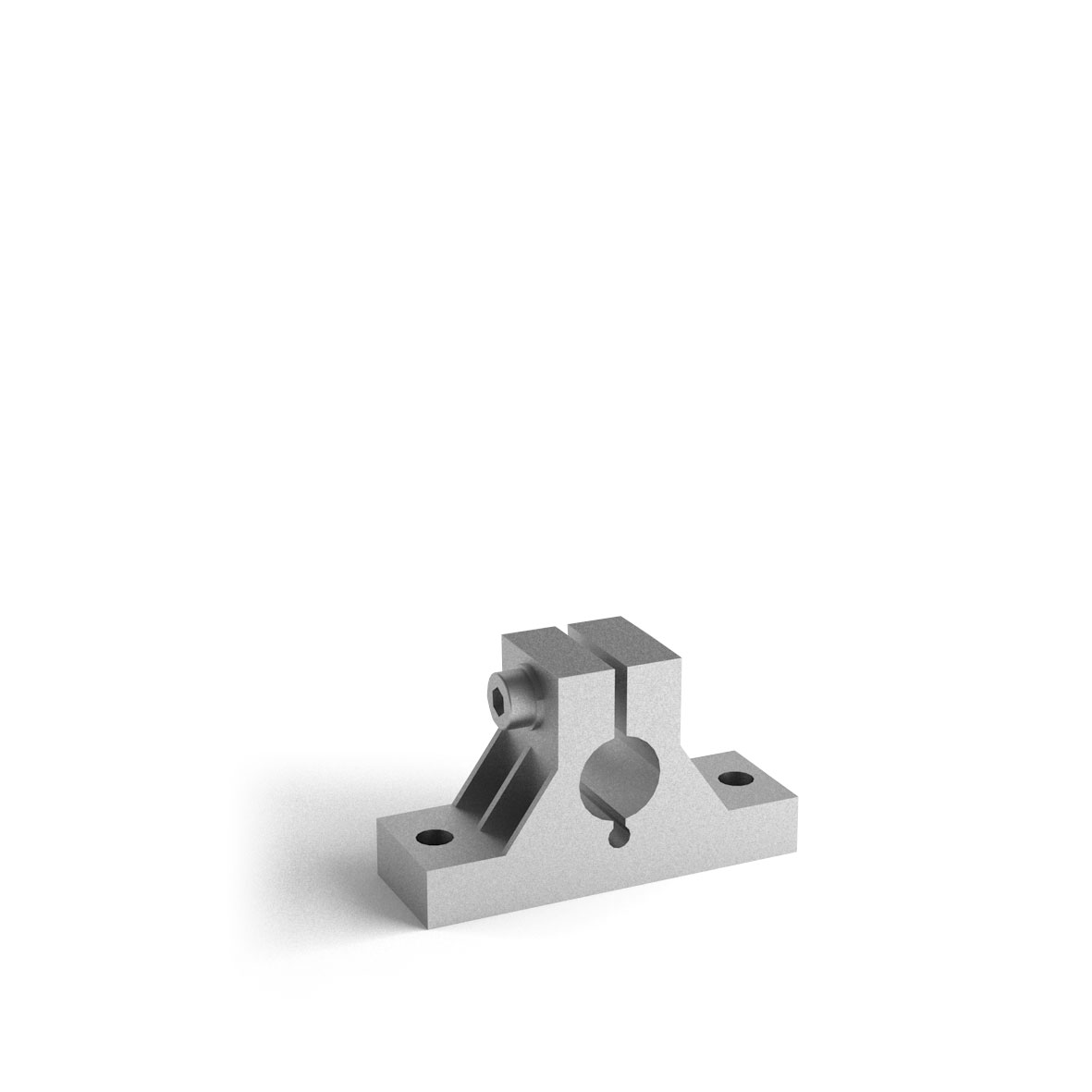

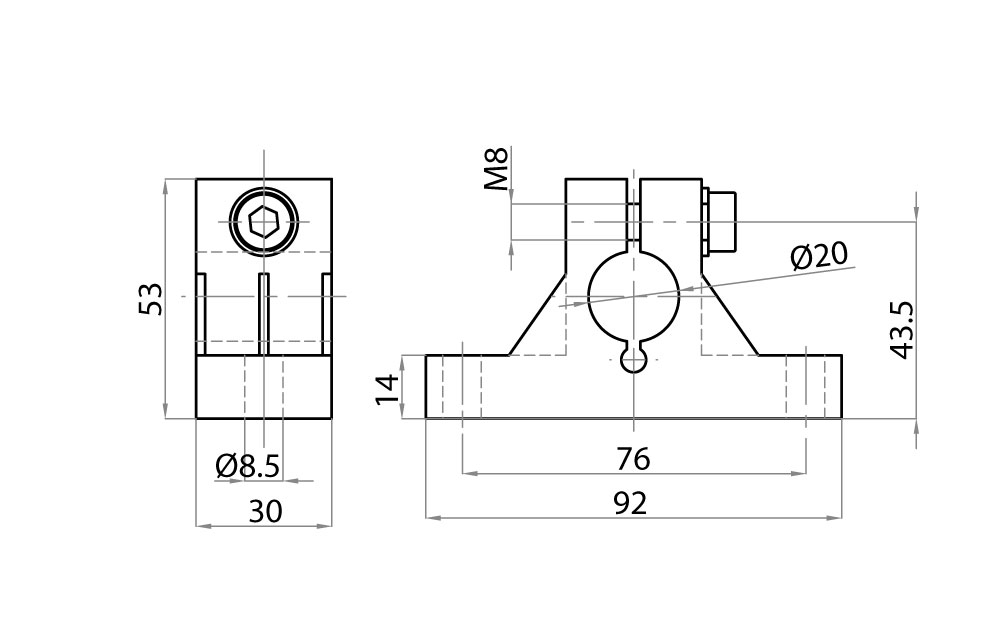

Horizontal base support for Ø20 tube (complete with screw)

cod. 729220

Horizontal base support for Ø20 tube (complete with screw)

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Material Rod type Supply set Weight (Kg)
729220 sand blasted aluminium Ø20 mm
with 1
H.S.H.C. M8x30
 0,140
