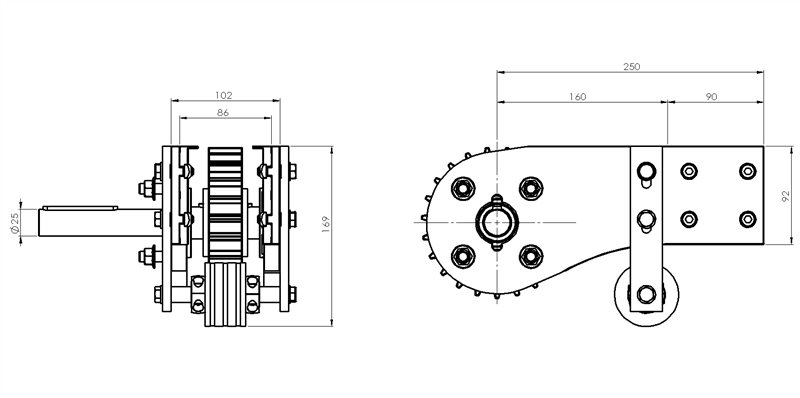

Pulling head (left) for steel chain 82,5

cod. ATS12086S

Pulling head (left) for steel chain 82,5

Download
To be able to view files (technical drawings, DXF, DWG...) you must be registered and authenticated
Register o log In
Art. No. Channel dimension (mm) Chain width (mm) Pitch Ø (mm) External Ø (mm) No. of teeth
ATD12086S 86 82,5 147,2 149,9 23
